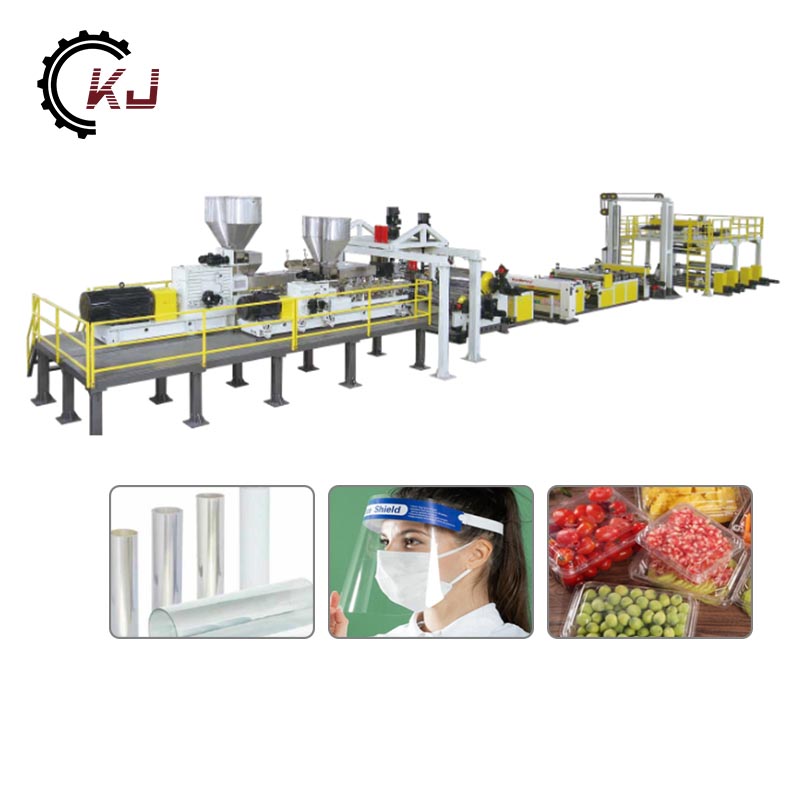

Automatic PET Sheet Production Line

The screw is tailored with a parallel twin-screw configuration, specifically for PET applications. It features venting capabilities, uniform plasticization, an oblique three-roll calender design, and an L-shaped calender design. To ensure the product's superior toughness, the roller temperature can be precisely adjusted via a mold temperature controller. The Automatic PET Sheet Production Line from Zhejiang Kangju Machinery boasts high transparency and comes equipped with a pre-coated silicone oil device, guaranteeing smooth sheet release during secondary processing. Additionally, thickness measurements are accurately taken with a dial gauge, and the winding process is automatically tensioned for consistent results.

Send Inquiry

Product Description

For the Automatic PET Sheet Production Line by Kangju Supplier, the screw incorporates a parallel twin-screw design that is specifically engineered for PET processing. This design boasts features such as venting capabilities, ensuring uniform plasticization, an oblique three-roll calendar design, and an L-type calendar design. To maintain product toughness, the roller temperature can be precisely adjusted through a mold temperature controller. The system also exhibits high transparency and incorporates a pre-coated silicone oil device, guaranteeing the smooth release of the sheet during secondary processing. For accurate thickness measurements, a dial gauge is utilized, while the winding process is automated with tension control.

Final Porduct

Plastic PET Sheet

Equipment model

SHJ900mm

Product width (mm)

750mm

Product thickness (mm)

0.2mm--1mm±2%

Max line speed m/min

35m/min

Application

Disposable tableware, plates, cups etc

Capacity

200-300kg/h

Final productions

PET Sheet Extrusion Line

Twin Screw Dryer-free Vented PET/Automatic PET Sheet Production Line

The automated PET sheet production line is designed specifically for PET sheets, featuring an integrated degassing system that eliminates the need for separate drying and crystallizing units. This extrusion line boasts low energy consumption, a streamlined production process, and ease of maintenance. The segmented screw structure effectively minimizes the viscosity loss of PET resin, while the symmetrical thin-walled calender rollers enhance cooling efficiency, ultimately improving production capacity and sheet quality. Furthermore, the multi-component dosing feeder ensures precise control over the percentages of virgin material, recycled material, and masterbatch, making these sheets highly suitable for the thermoforming packaging industry.

PET Sheet Extrusion LinePET Sheet Extrusion LinePET Sheet Extrusion Line

Automatic PET Sheet Production Line  PRODUCT CONFIGURATION

Machine Composition

Model

Machine

Quantity

1

PET raw material drying tank

1 set

2

Vacuum screw feeder

1 set

3

Twin screw extruder

1 set

4

Vacuum negative pressure system

1 set

5

Double channel filter

1 set

6

Melt metering pump

1 set

7

PET special mold die

1 set

8

Three-roll calendering forming part

1 set

9

Silicone oil coating and Oven device

1 set

10

Edge material cutting device

1 set

11

Edge material recovery device

1 set

12

Double station winding system

1 set

13

 human-machine interface control system

1 set
