PVC Edge Banding Production Line

Introducing the PVC Edge Banding Production Line – a versatile and highly efficient solution for your edge banding needs. This fully automated production line is designed for high volume, low-waste production of PVC edge banding tape, made to the highest standards of quality and precision.

Send Inquiry

Product Description

At the heart of this production line is a state-of-the-art extruder, which ensures that the PVC material is evenly melted and fused together to form a consistently high-quality edge banding tape. The material is then cooled, cut, and rolled onto a spool for easy storage and transport.


One of the key advantages of this production line is its flexibility. It can handle a wide variety of different PVC materials, including solid colors, wood grain patterns, and even high gloss finishes. And with its advanced control systems and user-friendly interface, it's easy to switch between different materials and settings to get the perfect edge banding tape for your needs.


But what really sets this production line apart is its efficiency. With its fully automated production process, it can produce edge banding tape at a rate of up to 100 meters per minute, with minimal waste and downtime. And thanks to its advanced monitoring and quality control systems, you can be sure that every meter of tape produced meets your exact specifications.


In addition to its production capabilities, this PVC Edge Banding Production Line is also designed with ease of use and maintenance in mind. It's easy to set up and operate, with intuitive controls and clear instructions. And with its durable construction and easy-to-clean design, it will give you years of reliable service with minimal maintenance required.


We can use single screw extruder or double screw extruder to produce PVC edge band according to customer requirement. Three ways of PVC edge band production line:

1. Mixer+ PVC granulating machine+single screw extruder+printing machine

Process: First you need mix raw material together by PVC mixer, second make granule by granulating machine, and then Use single screw extruder(SJ45 or SJ65 single screw extruder) to get edge band, then use printing machine to get glossy surface or wooden design and etc.

2. Mixer+Double screw extruder+ printing machine

Process: First mix raw material together by mixer, and the use double screw extruder(SJSZ51/105 or SJSZ55/110) to produce egde band, final step is to print color or make edge band glossy.

3. Three calender system+ printing machine+cutting machine:

First mix raw material, and then use three calender system to produce big width edge band sheet, and then print colors on the edge band, finally, cut pvc edge band sheet into specific width like 19mm, 20mm etc...

Product thickness* width0.5*18mm0.6*20mm0.6*20mm0.6*20mmSJ45/28Single screw extruderSJ45/28SJ65/3316-63SJ55/28SJ55/2850-80kg/hCapacitySJ65/3350-80kg/h60-90kg/h60-90kg/h

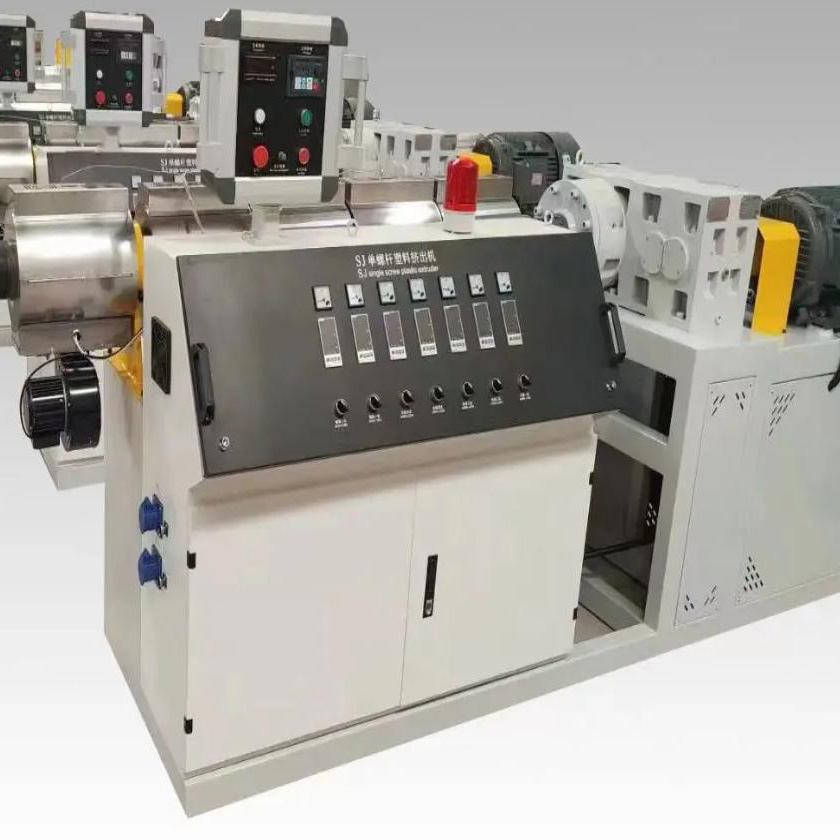

main machine


mould


cooling tank


haul-off  tractor


winder


winder


final products


final products
