800mm cosmetic PE tube/pipe extrusion production line

The following is the introduction of high quality 800mm cosmetic PE tube/pipe extrusion production line, hoping to help you better understand it. Welcome new and old customers to continue to cooperate with us to create a better future!

Send Inquiry

Product Description

HDPE series plastic pipe production lines manufacturer and supplier




HDPE series plastic pipe production lines are mainly used to produce waste supply and drainage pipes in fields such as agriculture and construction.

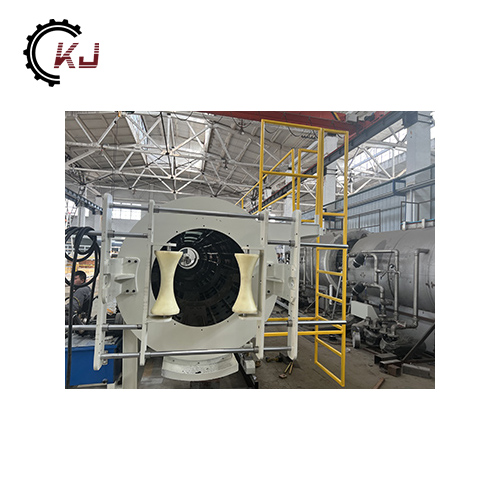

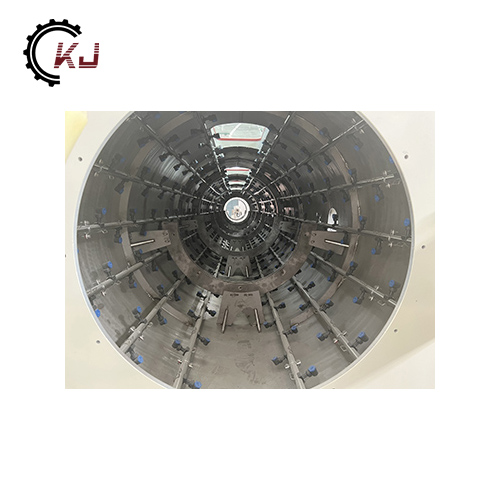

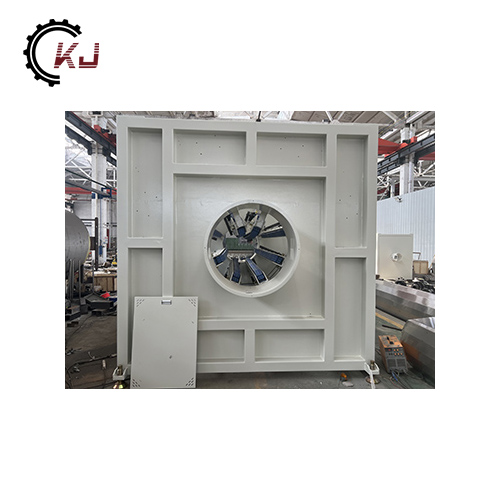

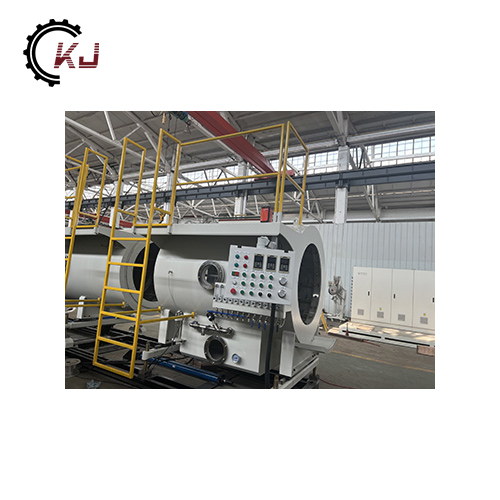

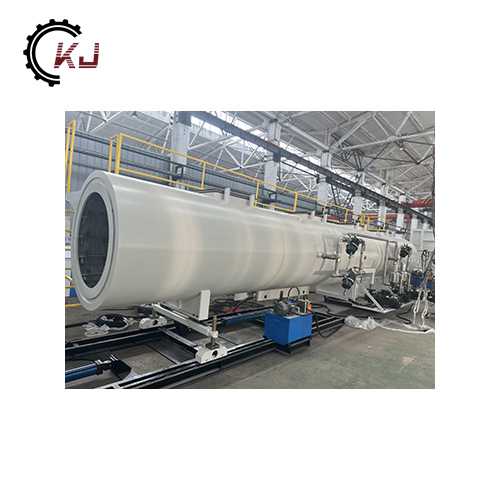

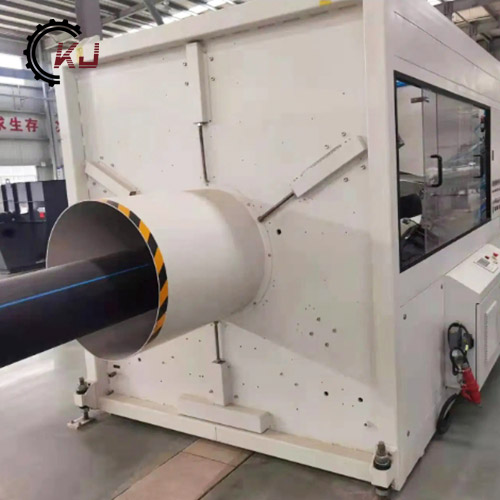

The 800mm cosmetic PE tube/pipe extrusion production line consists of extruder, mold, vacuum calibration tank, and hauling unit. Cutting units, stackers, etc.

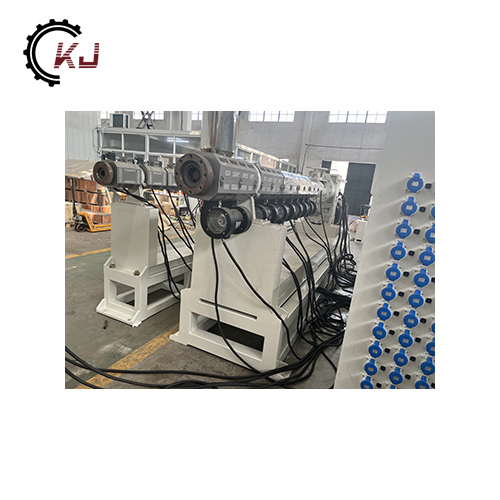

The single-screw extruder and hauling unit adopt the famous A/C frequency conversion speed control device, and the vacuum pump and water pump

are of famous brands. The hauling units include double-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, ten-claw type, twelve-claw type, etc.

Dust-free cutting machines, saw blade cutting machines or planetary cutting machines can be used, and the performance of the unit is reliable.

The production efficiency is high by using special equipment. It can also produce PP, PE, ABS, PPR, PEX, silicon core tubes, etc.

The planetary cutting machine is automatically controlled by a computer and has the advantages of simple operation and reliable performance.

It has reached the international advanced level.



Functions at a glance

1.Reliable gearbox

2. Bimetallic screw and barrel

3. Screw oil cooling

4. Mold air cooling

5. Automatic water temperature control

6. Automatic water level control

7.Reliable rubber block

8. Reliable cutting tools controlled by PLC

9. Siemens brand motors and electrical parts


Model extruder Pipe range(mm) Capacity (kg/hour) Main motor power (kW) Total power (kW) Line length (meters)
PE-63 SJ65/33 16-63 120-180 45 110 28
PE-110 SJ65/33 16-110 150-200 55 130 28
PE-160 SJ75/33 150-160 180-220 75 150 30
PE-250 SJ75/33 75-250 280-350 90 280 30
PE-315 SJ90/33 110-315 300-400 132 350 36
PE-450 SJ90/33 160-450 350-450 160 400 42
PE-630 SJ120/33 315-630 550-850 200 550 45
PE-800 SJ150/33 450-800 800-1200 250 650 45
PE-1200 SJ120/33 90/33 710-1200 1000-1500 285 800 48
PE-1600 SJ120/33 120/33 800-1600 2000-3000 500 1200 48
