PE Pulverizer Machine

The PE Pulverizer Machine machine of the SMF series are available with diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.

Send Inquiry

Product Description

The PE grinding pulverizer machine of the SMF series are available with diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium hard, impact resistant and friable materials. The material to be pulverized is introduced through the centre of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one piece grinding discs or grinding segments.

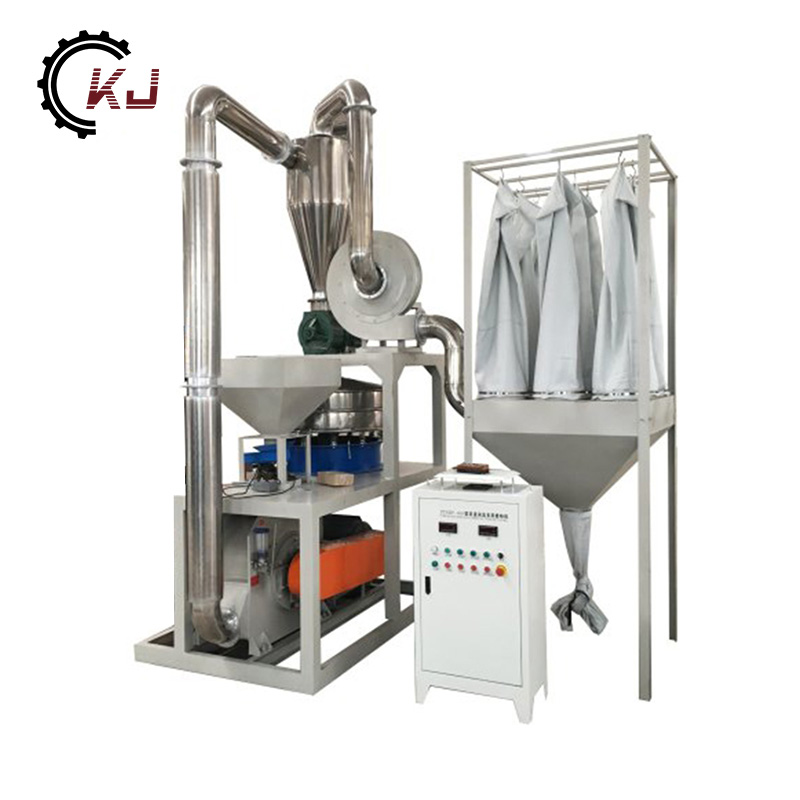

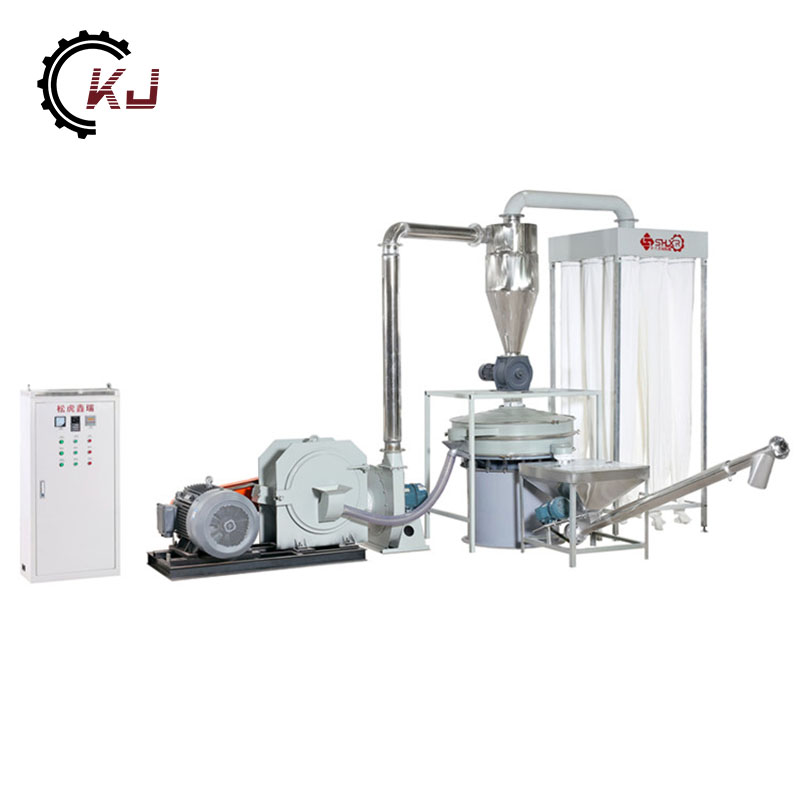

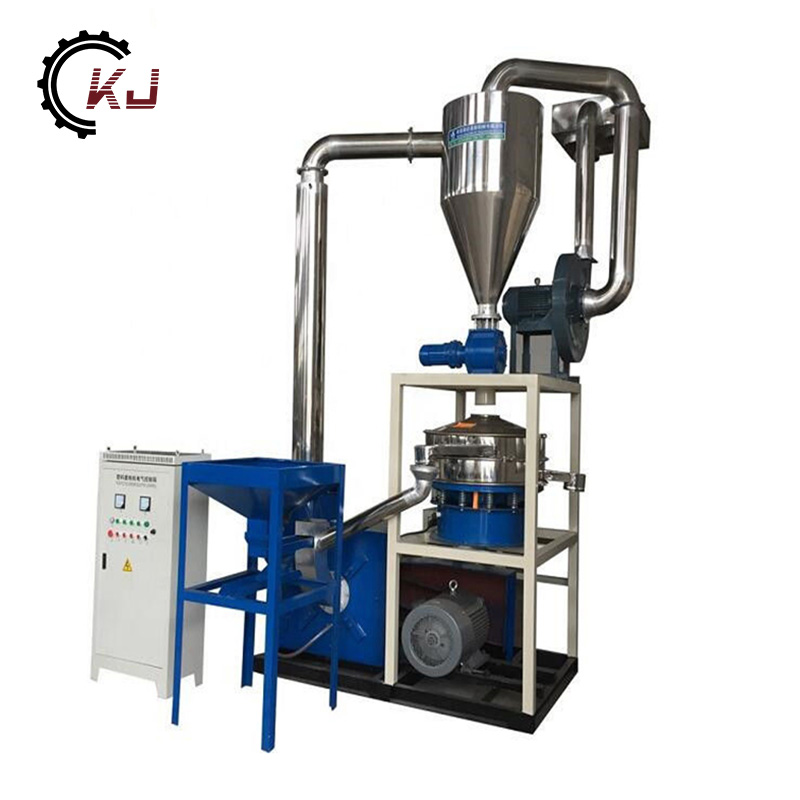

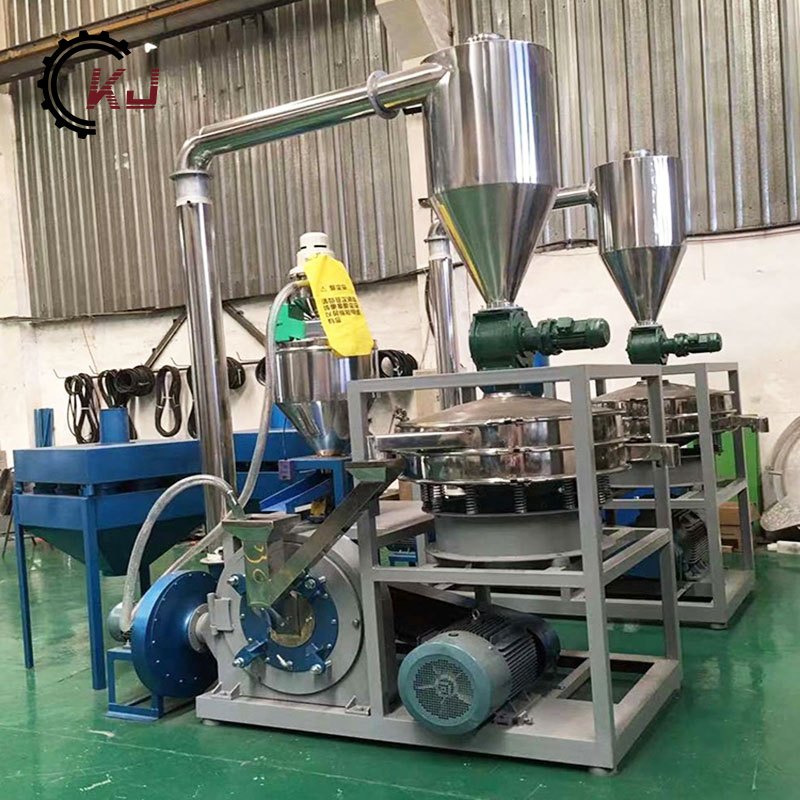

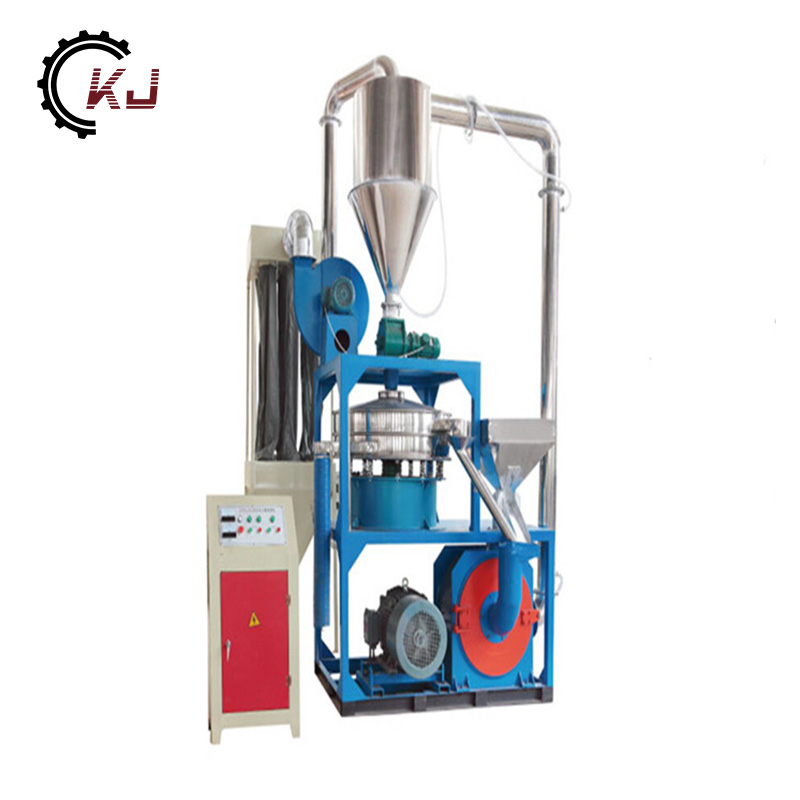

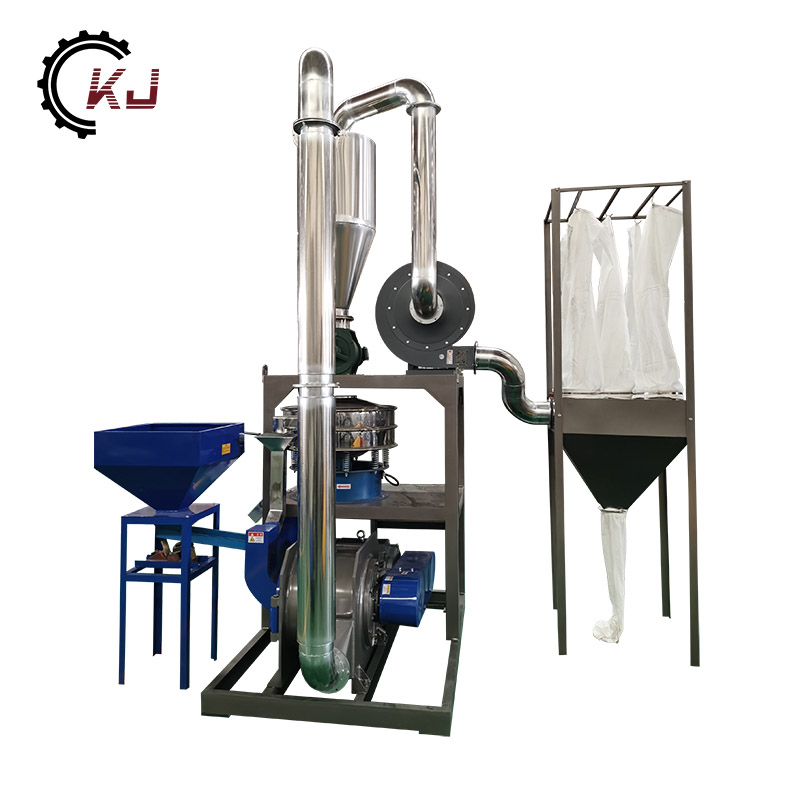

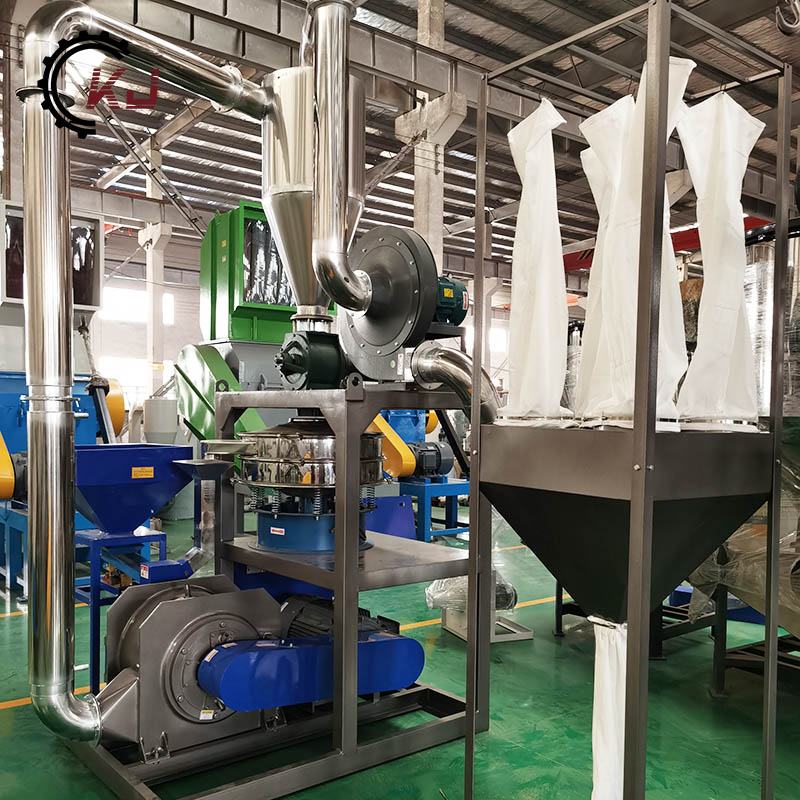

The plastic pulverizer machine is mainly composed of electric motor, disc type blade, feeding fan, vibrating sieve, dust removing system, etc.

According to the customer's needs, you can choose some accessories, such as converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, etc.

PE pulverizer machine specifications:

SPECIFICATIONS
Model	KJ-400	KJ-600	KJ-800
Blade Dia size(mm)	380mm	610mm	800mm
Balde Disc QTY(pcs)	2	2	2
Spindle Rotary speed(RPM)	4500r/min	4200r/min	3700r/min
Motor Power Blower Power Flow valve Power	30kw 3kw 0.75kw	45kw 5.5kw 0.75kw	55kw 7.5kw 1.1kw
Blower Power	ZDS-800	ZDS-1000	ZDS-1200
Flow valve Power	10-100	10-100	10-100
Shaker model	AIR COOLED & WATER COOLED
Capacity	PVC:200kg PE:150kg PP:80kg	PVC:350kg PE:250kg PP:160kg	PVC:500kg PE:350kg PP:200kg
Machine size	250020003000mm	280023003000mm	320028003200mm
