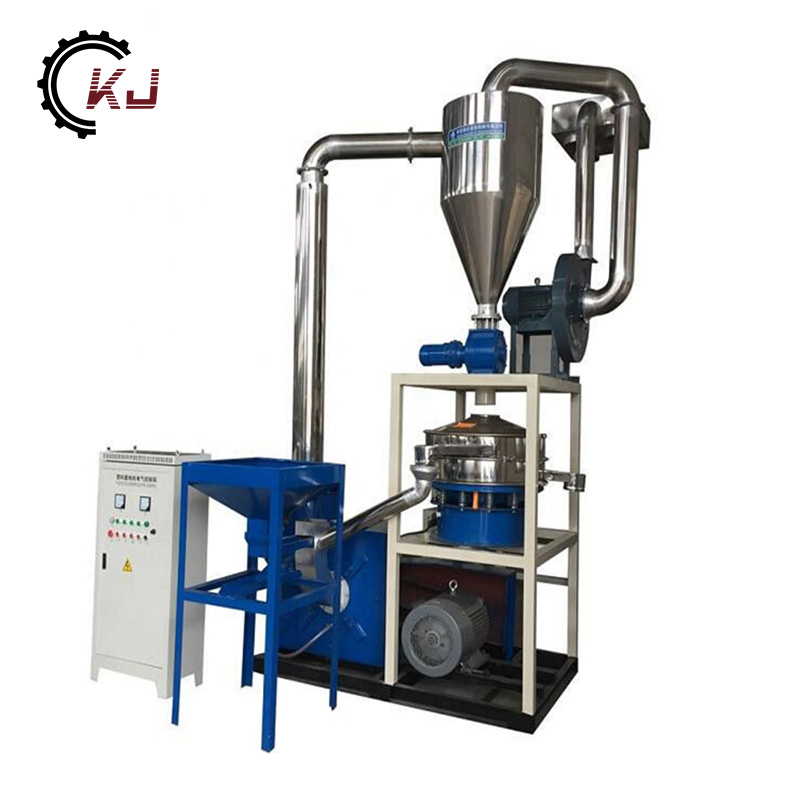

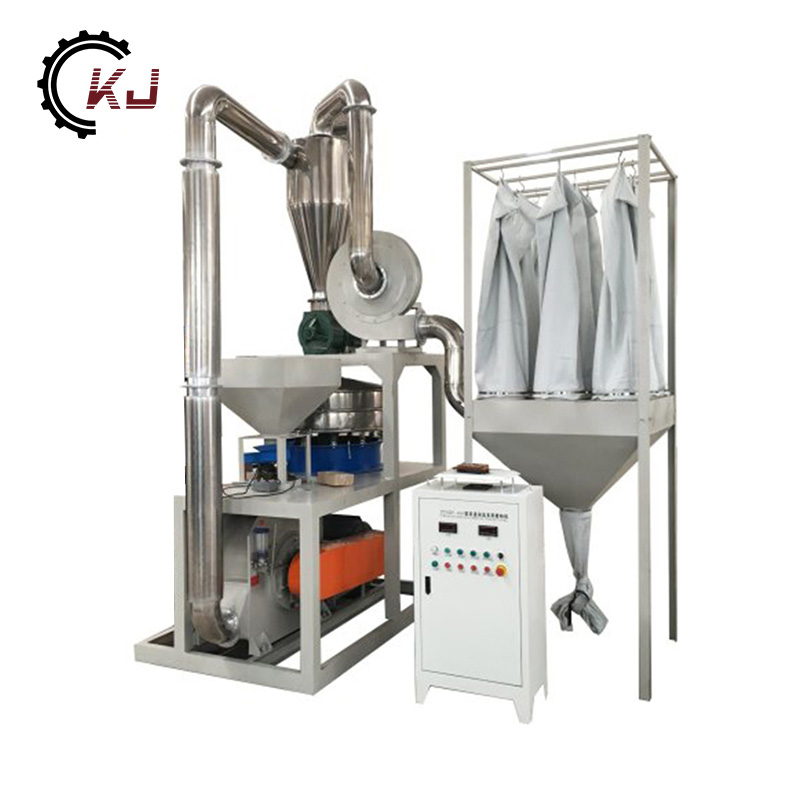

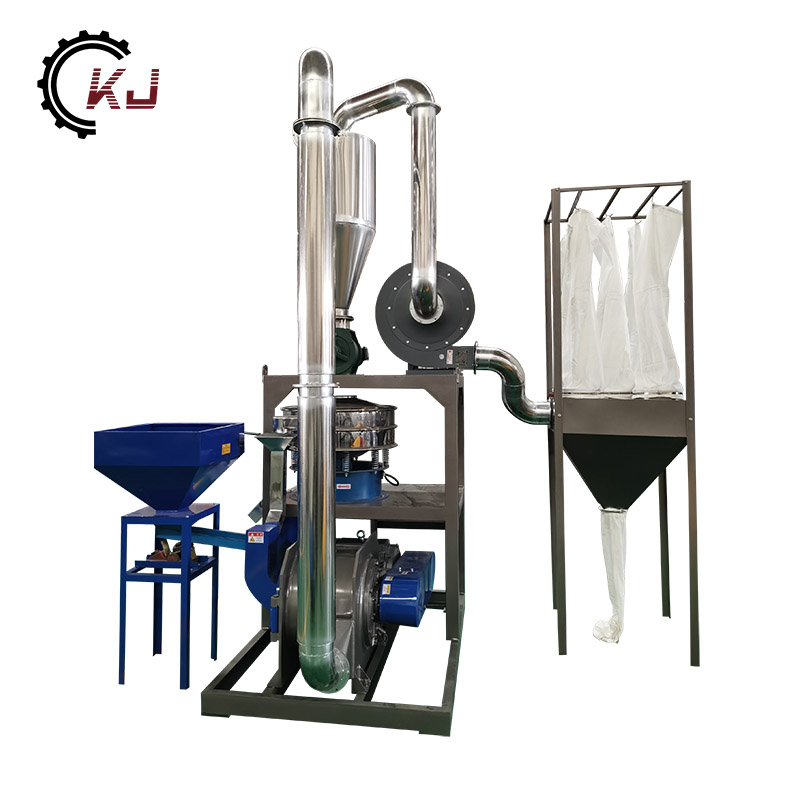

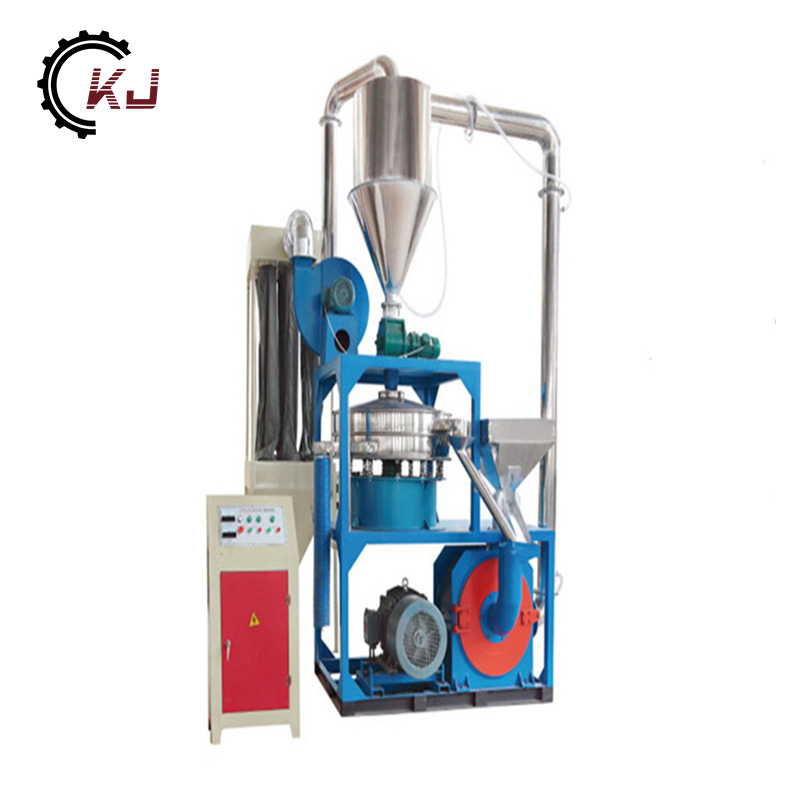

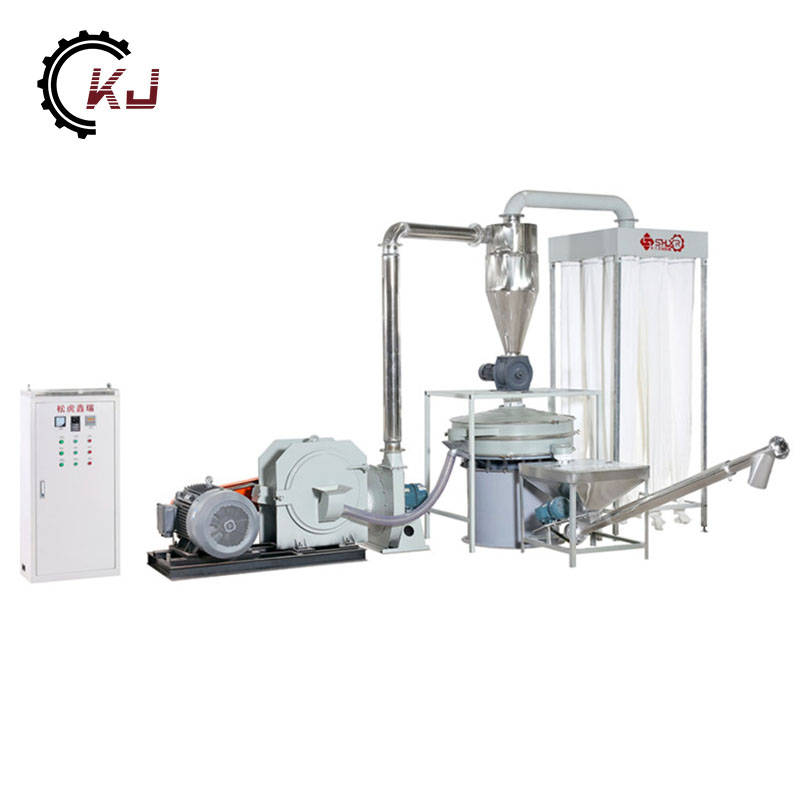

PVC PP PE Pulverizing Machine

Kangju offers the SMF series of PVC PP PE Pulverizing Machines, ranging in diameter from 300 to 800 mm. These pulverizers are designed for high-speed, precise grinding of medium-hard, impact-resistant, and brittle materials. The material to be pulverized is fed through the center of a vertically mounted, stationary grinding disc that rotates concentrically with an identically sized, high-speed rotating disc. As centrifugal force propels the material through the grinding zone, the resulting powder is efficiently collected by a blower and cyclone system. Depending on specific needs, these machines can be equipped with either one-piece grinding discs or segmented grinding discs.

Send Inquiry

Product Description

Kangju manufactures the SMF series of PVC PP PE Pulverizing Machines, which are available in diameters ranging from 300 to 800 mm. These pulverizing machines are high-speed, precision grinding devices specifically designed for processing medium-hard, impact-resistant, and fragile materials. The material destined for pulverization is fed through the center of a vertically mounted, stationary grinding disc aligned concentrically with an identical, rapidly rotating disc. Material is propelled through the grinding zone by centrifugal force, and the resulting powder is efficiently gathered by a blower and cyclone system. Depending on the specific application, these machines can be outfitted with either single-piece grinding discs or grinding segments.

PE Pulverizer Machine

The PVC PP PE Pulverizing Machine primarily consists of components such as an electric motor, disc-type blade, feeding fan, vibrating sieve, and dust removal system.

Customers can select various accessories based on their requirements, including a converter, vacuum loader, screw loader, magnetic net, metal separator, chiller, pulse dust collector, metering and weighing packaging machine, among others.

PVC PP PE Pulverizing Machine specifications:

SPECIFICATIONS
Model	KJ-400	KJ-600	KJ-800
Blade Dia size(mm)	380mm	610mm	800mm
Balde Disc QTY(pcs)	2	2	2
Spindle Rotary speed(RPM)	4500r/min	4200r/min	3700r/min
Motor Power Blower Power Flow valve Power	30kw 3kw 0.75kw	45kw 5.5kw 0.75kw	55kw 7.5kw 1.1kw
Blower Power	ZDS-800	ZDS-1000	ZDS-1200
Flow valve Power	10-100	10-100	10-100
Shaker model	AIR COOLED & WATER COOLED
Capacity	PVC:200kg PE:150kg PP:80kg	PVC:350kg PE:250kg PP:160kg	PVC:500kg PE:350kg PP:200kg
Machine size	250020003000mm	280023003000mm	320028003200mm
