PVC Roof Tile Extrusion Machine Line

The PVC Roof Tile Extrusion Machine Line is mainly used in the production of plastic glazed tile.The plastic glazed tiles are widely used in the garden-style factory,tourist scenic spots, pavilions,hotels,family building, etc.

Send Inquiry

Product Description

PVC Roof Tile Extrusion Machine Line Manufacturers and Suppliers

PVC Roof Tile Extrusion Machine Line


Main technical parameter:

Products width (mm)

Products thickness (mm)

Extruder machine

Max. output (kg/h)

880

2-4

SJSZ-80/156

FSJ-45/28

400kg/h

1040

2-4

SJSZ-80/156

FSJ-50/28

450kg/h


Working Flow:

Main extruder machine →Conical twin screw extruder machine → Mould → Forming machine→ Embossing machine → Cutting machine。


Glazed tile roofing sheet Applications

The Plastic Roofing Tile Roll Forming Machine is mainly used in the production of plastic glazed tile.The plastic glazed tiles are widely used in the garden-style factory,tourist scenic spots, pavilions,hotels,family building, etc.

PVC Roof Tile Extrusion Machine LinePVC Roof Tile Extrusion Machine Line


Product Flows

High speed mixer---conical twin screw extruder---co-extruder---co-extrusion die head---embossing and cooling rollers---forming machine---saw cutting machine---stacker---pneumatic pressing machine for ridge tiles moulds.


Configuration

No.

Machine

Quantity

1

Screw loader

1 set

2

SJZ80/156 conical twin-screw extruder

1 set

3

SJ65/35 single screw co-extruder

1 set

4

Extrusion mould and flow distributor

1 set

5

Embossing roller

1 set

6

Side cutter

1 set

7

Glazed-tile forming machine

1 set

8

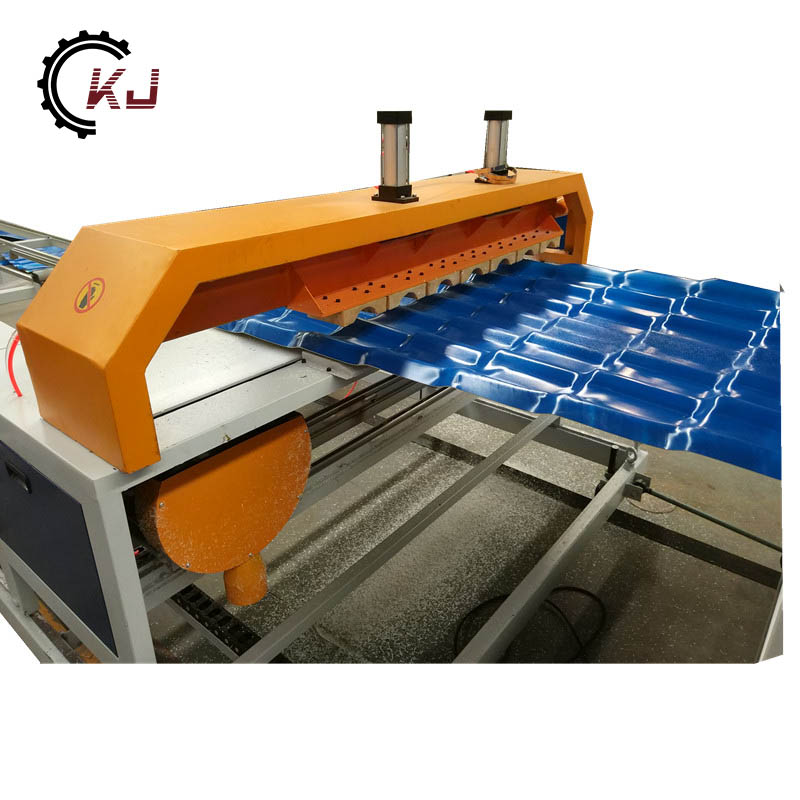

Cutter

1 set

9

Stacker

1 set


Auxiliary Machines

No.

Machine

Quantity

1

Mould: Main rigde tile; Oblique ridge tile; T cock; Tile end

4set

2

Pressing machine and oven

2set

3

SRL-Z500/1000 Mixing unit

1set

4

Screw loader

1set

5

SWP360 Crusher

1set

6

SMP600 Miller

1set


Sheet Specification

1. Width: 720, 880, 1040mm

2. Thickness: 1-4mm

3. Can be co-exrtusion ABA, AB, ABC

4. ASA or PMMA co-extrusion


Features of this tile:

1. Excellence weather fastness;

2. Waterproof outstanding performance;

3. Wind resistance, quake-proof;

4. Rich color, new personalized, stable and lasting;

5. Excellent fireproof performance;

6. Heat insulation, heat preservation;

7. Good sound insulation performance;

8. Excellent toughness and strength;

9. Simple construction--paving speed most quickly, construction cost minimum;

10. Economical.


Structure

Single layer

Double layers

Three layers

Suitable material

U-PVC

ASA/PMMA+UPVC

UPVC+UPVC foam +UPVC

Product width

720-1130mm

720-1130mm

720-1130mm

Product thickness

0.8-3.0mm

2.5-3.0mm

2.5-3.0mm

Extruder model

SJZ80/156

SJ50/30+ SJZ80/156

SJ50/105+ SJZ65/132+SJZ51/105

Designed capacity

300kg/h

350-400kg/h

350-400kg/h
