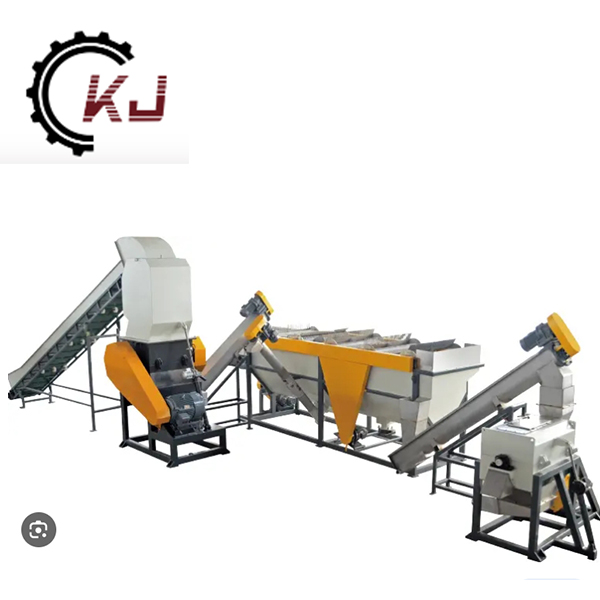

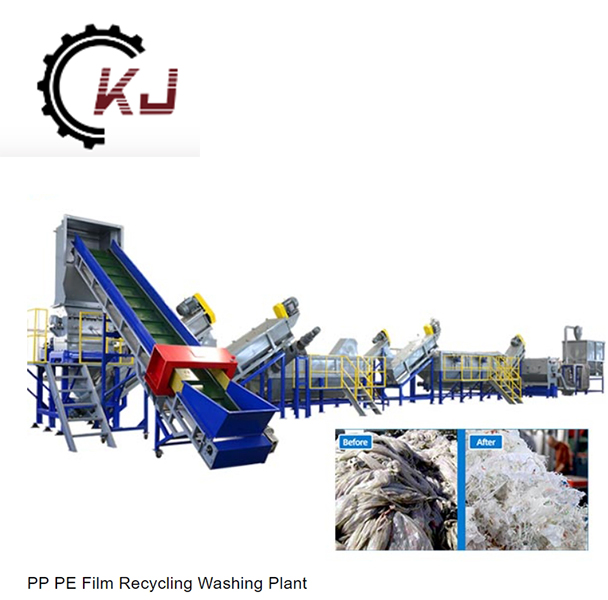

Plastic Film Recycling Machine Production Line

The Kangju high quality plastic film recycling machine production line can be designed according to the dirtiness of the PP PE film/bag and ensure the quality of the final product.Coordinate the production line with subsequent programming work (granulation system), which will turn waste and dirty PP PE films/bags into PP PE granular materials and produce new PP PE products.

Send Inquiry

Product Description


It sounds like you are referring to a production line for recycling waste plastic materials such as HDPE, PP, PE bags, and films.

This plastic film recycling machine production line typically involves several stages to process and recycle the plastic waste into reusable materials.


Here is an overview of the typical process involved in a plastic recycling production line:

Sorting and Shredding: The waste plastic materials are sorted based on their type (HDPE, PP, PE) and color. They are then shredded into smaller pieces to prepare them for the washing process.

Washing and Cleaning: The shredded plastic pieces are washed to remove any contaminants such as dirt, labels, and other residues. This step helps in preparing the plastic for further processing.

Drying: After washing, the plastic pieces are dried to remove excess moisture before they move to the next stage of the recycling process.

Melting and Extrusion: The dried plastic pieces are melted down and then extruded into pellets or granules. This process helps in converting the plastic waste into a form that can be easily reused for manufacturing new products.

Quality Control: Throughout the production line, quality control measures are implemented to ensure that the recycled plastic materials meet the required standards for reuse.

Packaging and Distribution: The recycled plastic pellets or granules are packaged and distributed to manufacturers who can use them as raw materials for producing new plastic products.

It's important to note that the specific details of each production line may vary based on the equipment used, the scale of operation, and the quality standards required for the recycled materials.

Additionally, proper waste management practices and environmental considerations should be taken into account throughout the recycling process



Main machine list

name (kilowatt)Motor Power (mm)size (T/H)Water Consumption (mm)stainless steel standard electrical standards
Belt conveyor 1.5kW 4000*600*2100mm - - According to customer's standards
Crusher 37kW 1800*1500*3000mm 0.6-1.0 -
spiral charger 1.5kW 3300*420*1600mm - 3-5
Belt conveyor 1.5kW 4000*600*2100mm - -
Crusher 37kW 1800*1500*3000mm 0.6-1.0 -
spiral charger 1.5kW 3300*420*1600mm - 3-5
floating sink 2.2*2KW 6000*1250*1700mm 4-5 3-5
spiral charger 1.5kW 3000*420*1450mm - 3-5
High speed friction washing machine 22kW 3200*1200*1800mm 1-2 3-5
spiral charger 1.5kW 3000*420*1460mm - 3-5
Dehydrator 45kW 1750*1420*1770mm - 5
Drying system-1 28kW 3700*1000*2000mm - 3-5
Transitional storage - 1200*1000*3000mm - -
Drying system-2 28kW 3700*1000*2000mm - 3-5
Storage hopper 2.2kW 3700*1500*3500mm - -
Electrical cabinet - 2000*450*1780mm - -
